Shed Wiring Tips: Essential Installation Advice for Electricians

If you own a shed on your acreage property and are tired of relying on extension leads from your house, it’s crucial to consider having it professionally wired for safety and efficiency. Whether your shed serves as a simple storage space needing just lighting and a power point, or a fully-equipped workshop where you utilise welders and compressors, following the correct procedures is essential. In NSW, the only lawful and secure method to achieve this is by engaging a licensed electrician.

This comprehensive guide outlines the necessary steps to connect power to your shed, details what your electrician must install, and provides a cost estimation for installations in the Mid North Coast area.

Effectively Initiate Your Shed Wiring Project with a Suitable Cable Run

The most vital aspect of any shed wiring project is establishing a dependable power source that runs from your main switchboard to your shed. Depending on the size of your property, this distance can significantly vary, ranging from 30 to over 100 metres. The greater the cable run, the larger the cable size needed to efficiently manage voltage drop, ensuring that your shed receives adequate power without issues.

Essentially, you have two primary options for your cable run:

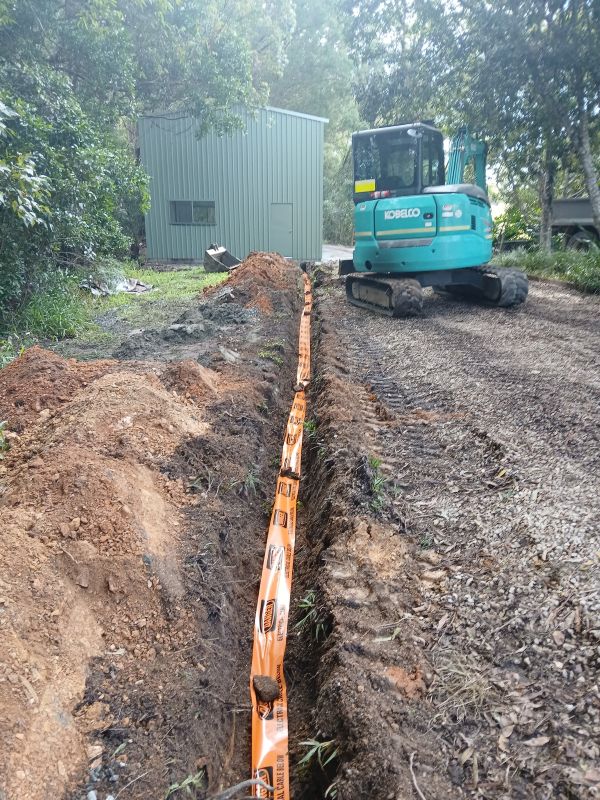

• Underground cable run — This method is the most preferred and visually appealing option. A licensed electrician will lay heavy-duty cable through orange conduit, buried at least 500mm deep (or deeper if vehicles are expected to traverse the area). This approach protects the cable from adverse weather, wildlife, and falling branches, making it the ideal choice for many acreage properties.
• Overhead cable run — Though less common in modern installations, this method may be necessary if solid rock or difficult terrain complicates trenching. Overhead installations require adherence to specific clearance heights and support poles, which can significantly increase overall costs.

For most properties situated in Bellingen, Coffs Harbour, and the Mid North Coast, the underground option remains the most advantageous choice. Your electrician in Bellingen can evaluate your site and recommend the most effective installation route.

Create a Dedicated Sub-Board for Efficient Shed Power Management

Merely running a single cable to the shed is not sufficient; expecting to plug in devices without additional infrastructure is unrealistic. Any shed receiving a proper power supply must be equipped with its own dedicated sub-board, commonly referred to as a distribution board. This setup acts as a mini switchboard within the shed, managing all electrical circuits and ensuring safe operation.

Your sub-board will typically consist of several essential components:

• Main switch — This switch allows you to isolate all power to the shed independently from the main house, providing an additional safety layer.
• RCDs (safety switches) — These devices are mandatory under NSW electrical regulations. They instantly cut power within milliseconds if a fault occurs, which is crucial in a shed often exposed to moisture, dust, and potential damage.
• Circuit breakers — These offer individual protection for each circuit in your shed, covering lighting, general power, and dedicated tool circuits, ensuring that you can operate multiple devices without the risk of overload.

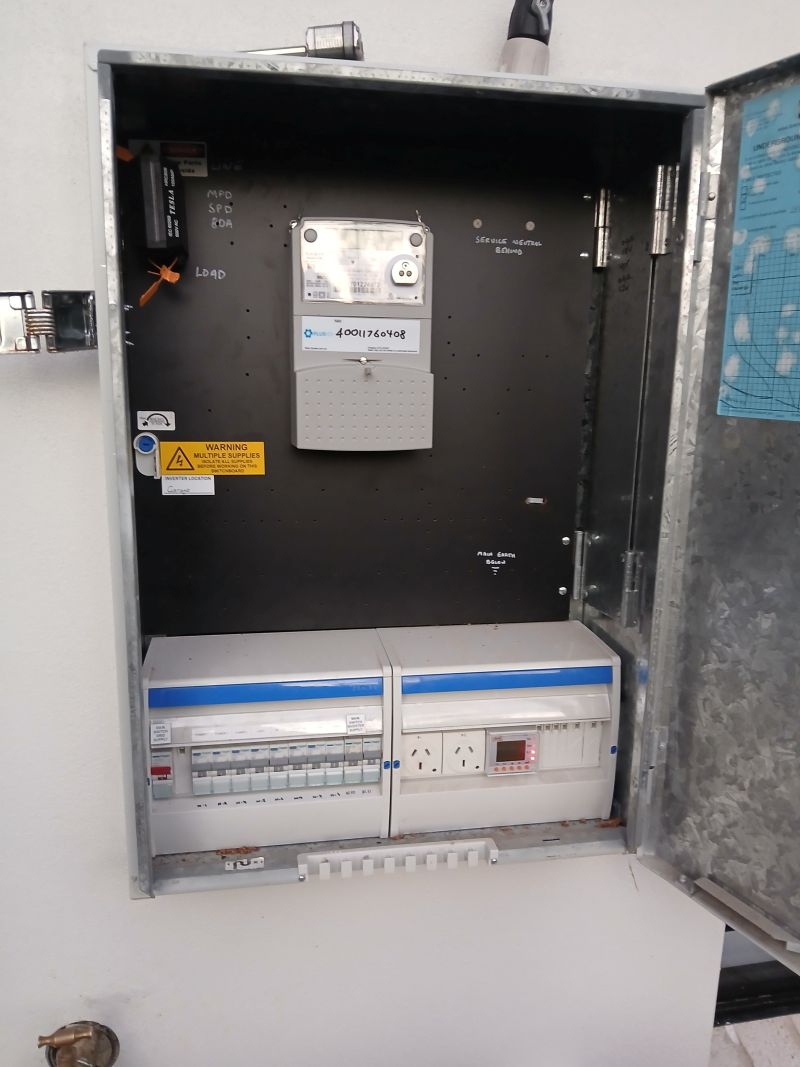

If your main switchboard at home is older, your electrician may recommend upgrading the switchboard to accommodate the additional load directed to the shed, guaranteeing that all connections are safe and efficient.

What Key Equipment Should Be Installed Inside Your Shed for Optimal Functionality?

The specific installations performed by your electrician inside the shed will be tailored to its intended purpose. Here is a detailed outline of what these installations typically include.

Enhancing a Basic Storage Shed Setup for Maximum Usability

For a shed primarily designed for storing tools, a ride-on mower, or general equipment, consider implementing the following installations:

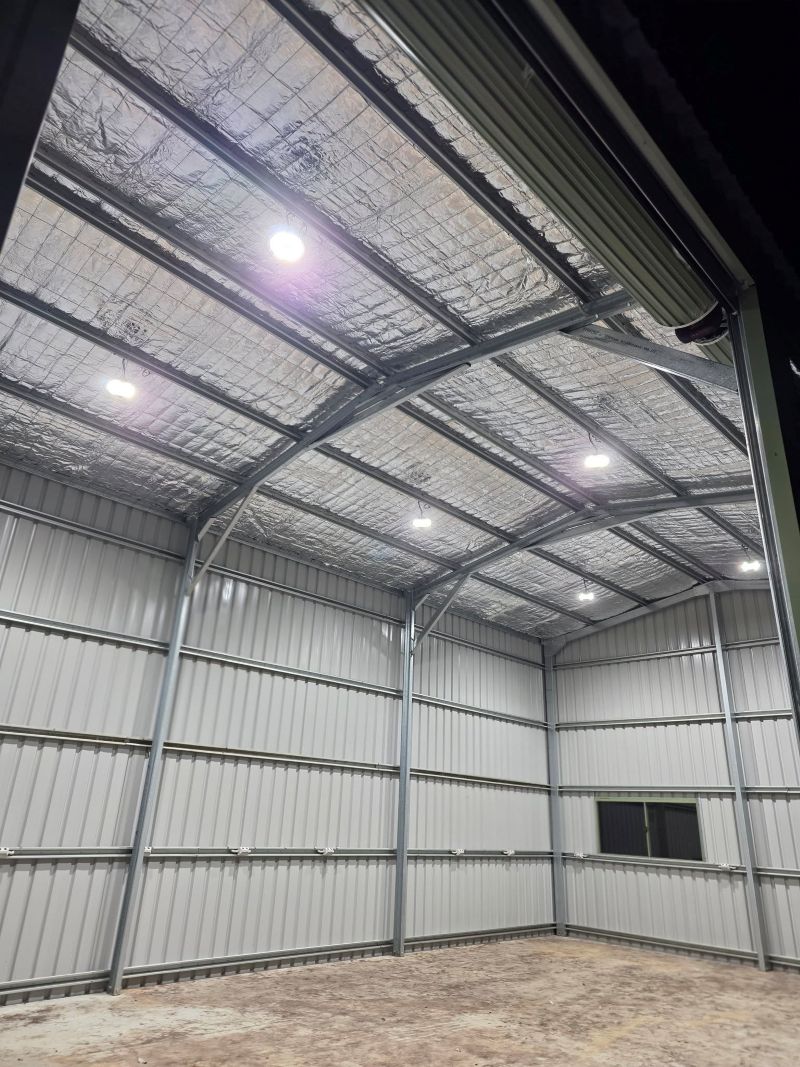

• LED batten lights — Installing one or two ceiling-mounted LED battens can effectively illuminate the entire space. Your trusted electrician can provide advice on the most suitable lighting layout based on the shed’s dimensions and your specific storage needs.

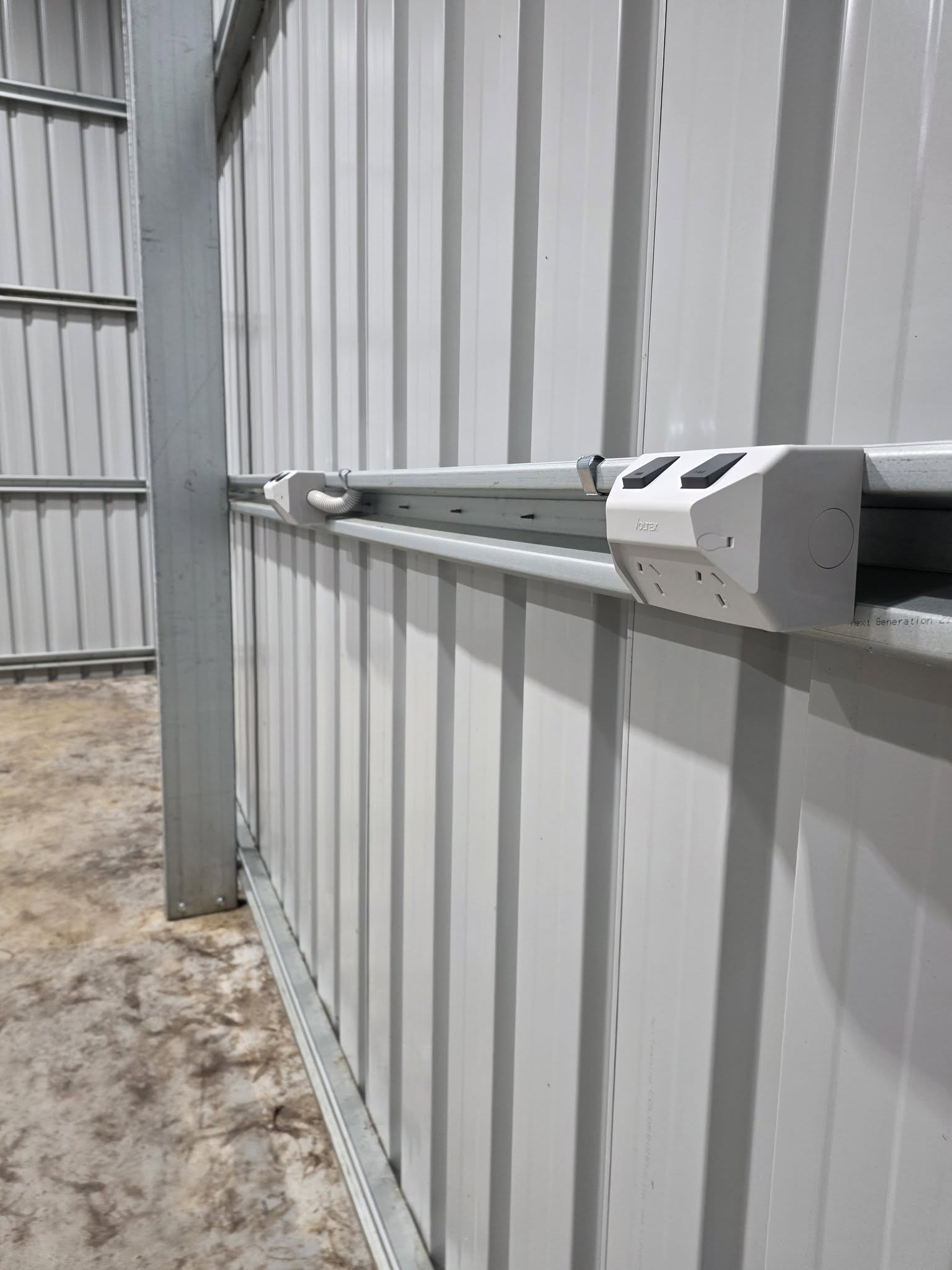

• Two to four general power points — This amount is adequate for plugging in chargers, radios, or a drop saw whenever needed. Standard power points and switches will operate on a single circuit, ensuring versatility for various tools.
• External light — An outdoor-rated LED light above the door ensures you can access the shed safely without fumbling in the dark, enhancing both safety and convenience.

Designing a Powered Workshop Shed for Enhanced Efficiency

If you frequently use power tools such as drop saws, bench grinders, or dust extractors, your wiring requirements will extend beyond basic setups and require careful planning:

• Multiple circuits — Create separate circuits for lighting, general power, and specialised power tool outlets. This configuration prevents the lights from flickering every time you activate a saw, ensuring a stable working environment.
• Higher-rated power points — Install 15-amp or 20-amp outlets to effectively accommodate heavier tools, ensuring you have the appropriate power supply for your equipment.
• Increased number of power points with optimal placement — Ensure outlets are positioned at bench height rather than only at skirting level, facilitating ease of use based on your workbench arrangement.

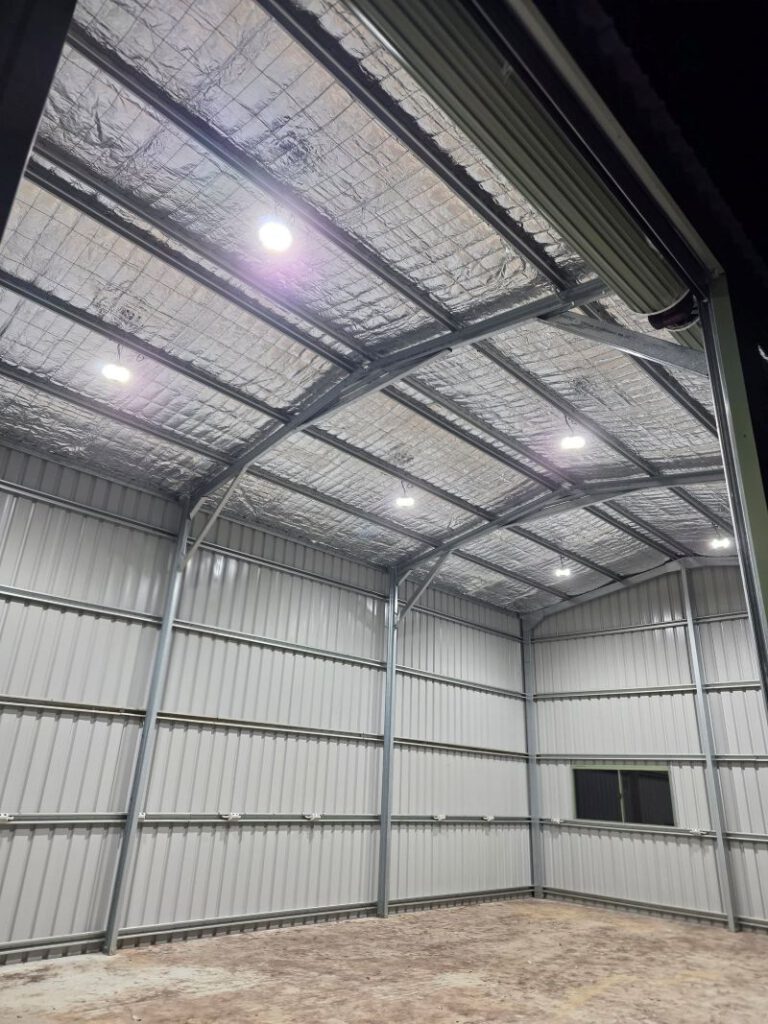

• Dedicated lighting — Provide brighter, targeted lighting over work areas, utilising LED high-bays for larger sheds to enhance visibility and safety.

For comprehensive guidance on establishing dedicated circuits for heavy tools, consult Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment, which delves into the specifics of effective wiring solutions.

Equipping a Full Workshop with Essential Three-Phase Power for Heavy Machinery

If your activities involve heavy machinery such as large compressors, lathes, MIG welders, or commercial-grade equipment, relying solely on single-phase power may not suffice. This is where three-phase power becomes essential to meet your energy demands.

Three-phase power offers a more stable and higher-capacity power supply, allowing you to operate multiple heavy-duty machines simultaneously without compromising performance. Your electrician will need to:

• Organise a three-phase supply from your energy distributor (this process can take several weeks in the Mid North Coast region).
• Install a three-phase sub-board in your shed, equipped with the necessary breakers and RCDs to ensure safety and compliance.
• Utilise heavier cabling — Keep in mind that three-phase cable runs can be more expensive, especially over extended distances, so careful planning is crucial.
• Set up three-phase outlets — These heavy-duty sockets are specifically rated for the equipment you plan to operate, providing the necessary power for efficient functioning.

If you’re uncertain about whether you require three-phase power, read Do I Need Three-Phase Power on My Property? — this resource discusses when it is beneficial and when a properly configured single-phase system will suffice. We also provide full three-phase switchboard installation if that aligns with your needs.

Prioritise Essential Surge Protection to Safeguard Your Shed

Properties located on the Mid North Coast often experience intense lightning storms. A direct or nearby strike can potentially damage everything in your shed, including tools, chargers, fridges, and any devices plugged in, leading to costly repairs.

Investing in a reliable surge protection device, installed within the sub-board, serves as inexpensive insurance against electrical surges. It absorbs voltage spikes before they can reach and damage your valuable equipment. For sheds containing costly tools or a workshop setup, this measure proves invaluable and could save you significant costs over time.

If your property also utilises a generator for backup power, your electrician can install a generator changeover switch, ensuring that both the shed and the house can safely switch to generator power during outages, maintaining critical operations during emergencies.

What Are the Requirements for Council Approval and Compliance in NSW?

Here are several vital considerations to keep in mind:

• All electrical work in NSW must be performed by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to save on labour costs, all electrical work — including cabling, connections, and sub-board installation — must be handled by a licensed contractor who will issue a Certificate of Compliance (CCEW) upon completion.
• Depth of underground cable must comply with AS/NZS 3000 (the Wiring Rules), a standard your electrician will ensure compliance with during the installation process.
• If the shed is newly constructed, you may need development approval depending on your local council and the size of the shed. While the electrical work itself might not require a separate permit, the overall construction may necessitate one.

Hack-It Electrical Solutions proudly holds the NSW Electrical Contractor Licence #230609C. We provide a compliance certificate for every job we complete, ensuring peace of mind and adherence to local regulations.

Understanding the Costs Involved in Shed Wiring on Acreage Properties

Each shed presents unique challenges — including distance from the house, whether you require single-phase or three-phase power, the number of circuits needed, and soil conditions impacting trenching. However, here’s a realistic cost guide for the Mid North Coast area:

• Basic shed wiring (lighting + a few power points, short cable run) — Starting from $2,500
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500
• Full workshop setup with three-phase power, dedicated circuits, and surge protection — Starting from $8,000+

Be aware that longer cable runs (50m or more), rocky terrain requiring specialised equipment, or upgrades to three-phase supply will all increase costs. The most effective way to obtain an accurate estimate is to have your electrician visit your property, assess the cable route, and gain a clear understanding of your shed’s intended use and requirements.

If you want a straightforward quote for your specific setup, feel free to call us at 0402 079 803 or contact us here.

Addressing Commonly Asked Questions About Shed Wiring in NSW

Can I Wire My Shed Myself in NSW Legally?

Absolutely not. All electrical work in NSW must be conducted by a licensed electrician. This includes tasks such as running cables to the shed, installing the sub-board, power points, lighting, and more. Engaging in DIY electrical work is illegal and poses significant dangers to you and your property. Your electrician will issue a Certificate of Compliance once the work has been completed, ensuring everything meets safety standards.

How Deep Must Underground Cable Be Buried to Comply with Safety Standards?

According to the Australian Wiring Rules (AS/NZS 3000), underground cable installed in conduit should be buried a minimum of 500mm deep under normal conditions. If vehicles are expected to drive over the route, the cable must be buried deeper, typically around 600mm or more. Your electrician will determine the appropriate depth for your specific property circumstances, ensuring compliance with safety regulations.

Do I Need a Separate Meter for My Shed in NSW?

In most instances, the answer is no. The shed’s sub-board connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed serves as a standalone dwelling or commercial premises — this consideration involves discussions with both the council and your energy distributor to ensure compliance with local regulations.

How Long Does It Typically Take to Wire a Shed on Acreage?

A basic shed wiring job, which encompasses trenching, cable installation, sub-board setup, lighting, and power points, typically takes between one to two days once the trench is prepared. If you’re digging the trench yourself, your electrician can provide guidance on the precise route and depth before you begin. Keep in mind that three-phase jobs may take longer due to the need to arrange the supply connection with the distributor first.

Can I Run Power From the Shed to Other Buildings on My Property?

Yes, you can. However, each additional building will require its own appropriately rated cable run and may need its own sub-board depending on the load. Your electrician can design a comprehensive layout across multiple buildings to ensure that the cabling and switchboard capacity are sufficient from the outset, rather than trying to add components later and potentially creating issues with power distribution.

Ensure Your Shed Wiring is Done Right with Professional Assistance

If you are situated on acreage near Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere across the Mid North Coast, Hack-It Electrical Solutions is here to assist you in setting up your shed correctly — whether it involves a basic lighting and power setup or a comprehensive three-phase workshop installation tailored to your specific needs.

Give us a call at 0402 079 803 or reach out through our website to schedule a site visit. We will survey your property, determine the optimal cable route, and provide you with a straightforward quote that meets your requirements.
