Victorian Tiles Restoration for Minton Floor Revival

What Causes Dullness in Walsall’s Minton Floor Even After Cleaning?

Assessing the Original Condition of Victorian Tiles for Effective Restoration

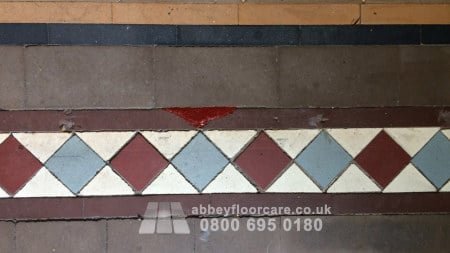

If your Victorian tiles remain dull despite multiple cleaning attempts, the cause is likely trapped contaminants and structural movement rather than just surface grime. The Minton hallway in Walsall displayed a worn surface, muted hues, loose tiles, an outdated sealer, and residues embedded within the clay. routine mopping merely redistributed dirt rather than effectively removing it. This scenario categorised the project as restoration, necessitating specialised techniques instead of traditional cleaning methods.

While the Walsall hallway preserved its status as an original patterned entrance, the surface lacked the vibrant contrasts of red, buff, cream, and dark clay typical of a well-restored Minton layout. Foot traffic had compressed fine soil into the tile surface, and the previous sealer had diminished the finish’s overall quality. the grout lines appeared dark due to the build-up of surface residues. A similar situation was evident in the Minton tile floor restoration in Ovington, where past coverings and compacted dirt concealed the original floor, which was only revealed through careful restoration work.

Walsall features a significant number of late Victorian and Edwardian terraced homes, along with interwar semi-detached houses and post-war housing developments. Many properties date back to the late 19th and early 20th centuries, making Victorian tile floors common in entrances, porches, pathways, and occasionally kitchens. Located in the West Midlands metropolitan county, Walsall is administered by Walsall Council, with most central areas falling under the WS postcode districts. The town’s rich industrial heritage and preserved period architecture contribute to the prevalence of original clay and encaustic tile floors, often hidden beneath modern coverings or outdated sealers.

How Do Hidden Residues Contribute to the Dull Appearance of Tiles?

The presence of trapped residues explains why the hallway appeared worn even after extensive cleaning efforts. The porous clay surface allowed dirt, old cleaning agents, waxes, and coating residues to settle beneath the visible layer of tiles. While fresh water can moisten these contaminants, it is insufficient for their removal. This highlights the practical implications of tile porosity on an ageing Minton floor: soil infiltrates the pores, accumulates around grout lines, and results in a flat appearance despite diligent cleaning efforts.

The old topical sealer created an inconsistent barrier across the floor. Coatings that once provided a temporary shine can break down into sticky residues, trapping dirt and creating darker patches in areas where the finish has worn thin due to foot traffic. the restoration process required careful removal of the old sealer, releasing surface residues, thoroughly rinsing the floor, and extracting the resulting slurry with a wet vacuum before any protective finish could be applied.

Contamination from carpet adhesives also posed concerns since many Walsall hallway tiles had been previously covered with carpet, linoleum, or vinyl at various times. A hidden layer can be concealed beneath thick glue, bitumen residues, tape remnants, and staining that only becomes evident once the covering is removed. In this case, no significant adhesive presence dominated the hallway; however, the inspection sought out brownish glue, black bitumen, softened coatings, and scraper marks, as these residues can influence the restoration process.

How Do Moisture Behaviour and Tile Stability Affect Restoration Efforts?

The characteristics of old permeable sub-floors greatly influenced the cleaning and sealing methods suitable for the Walsall floor. Excess water can penetrate the porous clay, reach the underlying bedding, and lead to tile movement, lifting, dampness, salt reactions, or an unstable foundation before sealers are applied. This moisture behaviour necessitated reliance on controlled cleaning, careful rinsing, and extraction rather than flooding the hallway with water.

Loose tile movement was a critical consideration since water and slurry can infiltrate beneath raised edges and into gaps. Once slurry dries beneath the tile surface, the floor may continue to appear dirty from the edges even after the main surface has been cleaned. the restoration process treated the floor as a cohesive historical assembly: clay tiles, grout lines, bedding, moisture pathways, and breathable protective measures needed to work together harmoniously.

During the assessment, the condition of missing tiles, backfilled doorway patches, exposed sub-floor areas, cement levelling compound backfill, and previous repair infills were also taken into account. Cement levelling can disrupt the original tile pattern, obstruct visual continuity, and leave a repaired hallway looking patchy rather than seamless. This Walsall floor required primarily local resetting rather than extensive replacement work; however, evaluating the doorway, original tiles, and sub-floor condition ensured that a simple clean was not mistaken for a proper restoration.

Why Is This Restoration Project Necessary?

This project was classified as restoration because mere cleaning would not resolve loose tiles or rectify the failures of old coatings. The work was essential to address compacted grime, surface coatings, grout line residues, moisture risks, and unstable areas before any sealing could be performed. A comparable restoration sequence is documented in the Victorian tile restoration case study in Penkhull, where loose sections and damaged joints required reintegration into the overall floor layout before achieving a visually coherent result.

The original Minton pattern had not disappeared; it was merely visually obscured. Restoration effectively removed the old products and ingrained dirt that muted the colours, subsequently protecting the clay with a breathable finish instead of a heavy surface film. Following professional intervention, the floor was expected to exhibit a significantly enhanced appearance. A professionally restored and properly sealed Victorian tile floor is considerably easier to clean and maintain compared to a worn or improperly treated floor.

Ongoing maintenance is critical for safeguarding the restored clay surface by removing dry grit before wet mopping and using a pH-neutral cleaner instead of harsh household chemicals. Strong cleaners should be avoided as they may leave alkaline residues, bleach grout lines, and shorten the lifespan of the sealed finish. Broader maintenance principles for older porous clay floors are detailed in the Victorian and Minton tile cleaning hub, which provides support for the aftercare decisions made in this Walsall case study.

What Key Factors Lead to Loose Tiles and Deep Soil in This Restoration?

The existence of loose Minton tiles and deep soil transformed this worn hallway into a restoration project due to underlying issues beneath the visible surface. The homeowner noticed dull colours, dark joints, and unstable areas; however, the root causes were movement, trapped residues, and contaminated slurry paths beneath and between the original tiles. To address these issues, structural re-bedding was essential before effective deep cleaning could restore the floor to an even state.

The extraction of slurry was crucial, as loosened soil, rinse water, mineral salts, and old coating residues had to be removed from the tile pores rather than allowed to re-dry within them. The restoration employed controlled water, agitation, rinsing, and wet vacuum removal, ensuring the floor was cleaned without excessively saturating the old permeable sub-floor. Similar movement and moisture behaviours are discussed in the right way to restore Victorian tiles properly, illustrating how stabilisation and breathable protection are integral components of the historical flooring restoration sequence.

Stabilising loose tiles is a prerequisite before deep cleaning can uniformly restore the floor.

What Steps Were Taken to Stabilise the Walsall Hallway While Keeping the Original Tiles Intact?

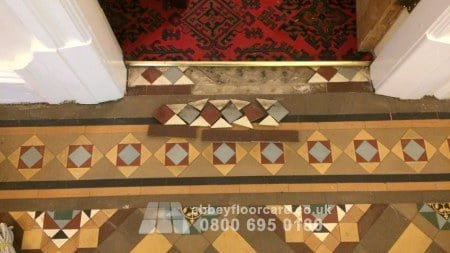

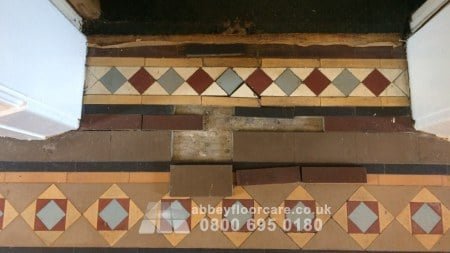

Cleaning a loose Minton hallway before stabilising it risks driving slurry beneath the tiles, potentially damaging delicate edges. In this case, the loose sections were carefully lifted, old bedding and residues were removed, and the tiles were reset to maintain the integrity of the original layout. This approach ensured that repairs formed an integral aspect of the restoration workflow rather than developing into a separate repair narrative.

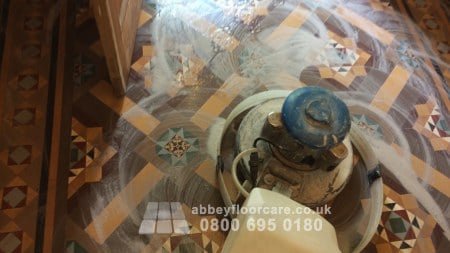

Thorough surface cleaning would have removed some visible grime, but it would not have addressed the old sealer, grout smears, mineral salts, and residues lodged within the pores. Controlled restoration employed an alkaline cleaner, scrubbing pad, rotary machine, clean rinse water, and wet vacuum extraction to eliminate contaminated slurry from the tile surface and joints. In situations where acid wash neutralisation was necessary due to alkalinity, traces of cement haze or mineral salts were rinsed away before moisture could evaporate and disturb the colour balance.

Careful stabilisation preserved the original tiles, as the process was dictated by the floor’s condition rather than applying a one-size-fits-all approach across the entire area. Broken tiles, missing tiles, and the need for matching replacement tiles were all considered to ensure that the pattern exhibited continuity. this hallway primarily required resetting, thorough cleaning, and breathable protection. This sequence restored the floor’s appearance, simplified surface maintenance, and avoided grinding down the historic clay face.

How Did the Restoration Process Enhance Clarity While Preserving Historical Character?

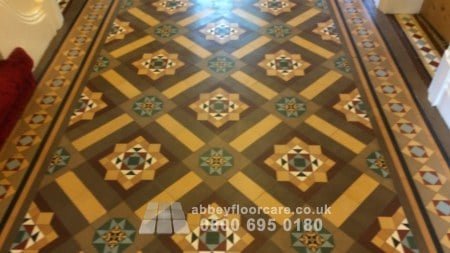

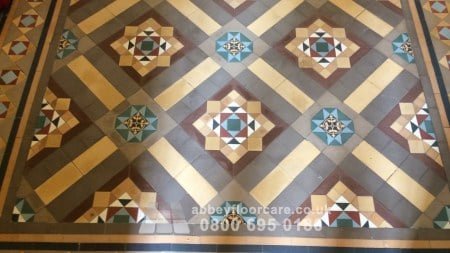

If your Victorian tiles exhibit colours obscured by layers of dull wear, restoration should enhance clarity without erasing the genuine age of the floor. The Walsall floor regained its vibrant contrasts as old coatings, embedded residues, and dark joint contamination were carefully removed from the clay surface. The original Minton pattern became more visible, while authentic signs of traffic wear and historical character remained evident.

Historic dishing was preserved, as grinding the floor flat would have removed original fired clay from the tile surface. Dishing represents permanent wear accumulated over decades of foot traffic and should not be perceived as a failure when the finished floor retains its historical context. The protective finish applied was a breathable colour-enhancing sealer that penetrated the pores, buffed off without leaving a superficial coating, and provided stain resistance while allowing moisture to escape.

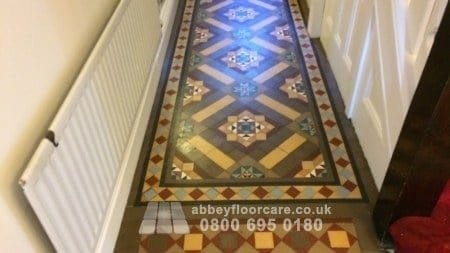

The completed hallway showcased a significantly enhanced appearance compared to its pre-restoration state and, in many respects, surpassed how it might have looked under outdated domestic coatings. The sealed surface became easier to maintain, as removing dry grit, using neutral pH cleaning, and resealing at appropriate intervals helped preserve the restored colour depth. The behaviour of colour in worn patterned clay is further explored in restoring colour and pigment to faded Victorian mosaic tiles, which delves into surface wear and clay pigment depth in greater detail.

Where Can You Access More Information on Common Victorian Tile Challenges?

Understanding typical Victorian tile issues requires a comprehensive context as residues, loose sections, faded colours, and missing pieces rarely occur in isolation. The Walsall hallway exemplifies the need for a holistic restoration perspective: the original tiles, grout lines, moisture pathways, coating histories, and final protective measures all contributed to the outcome. A related Minton hallway project is detailed in the Minton tile hallway restoration in Stafford, where surface contamination and controlled extraction similarly shaped the final appearance of the floor.

When dealing with broken tiles, missing tiles, or areas of old repair that disrupt a Victorian hallway pattern, sourcing and matching replacement tiles with care is essential. Quality repair work respects the original size, colour, border logic, thickness, and layout of the old floor to ensure new work blends seamlessly with the existing design. More extensive cleaning, sealing, and aftercare guidance can be found in the Victorian and Minton tile cleaning hub, which connects this Walsall outcome to broader material guidance.

Proper ongoing maintenance remains crucial in prolonging the life of the restored floor. A tailored handover should provide practical advice: remove grit before wet cleaning, use a pH-neutral maintenance cleaner, avoid bleach or steam cleaning, and evaluate sealing processes before the surface begins to absorb spills rapidly again. Simple yet vital.
