Minton Colours in Victorian Tile Restoration Revealed

What Causes the Worn and Patchy Look of Minton Tile Floors in Ovington?

Thorough Assessment of the Floor’s Initial Condition

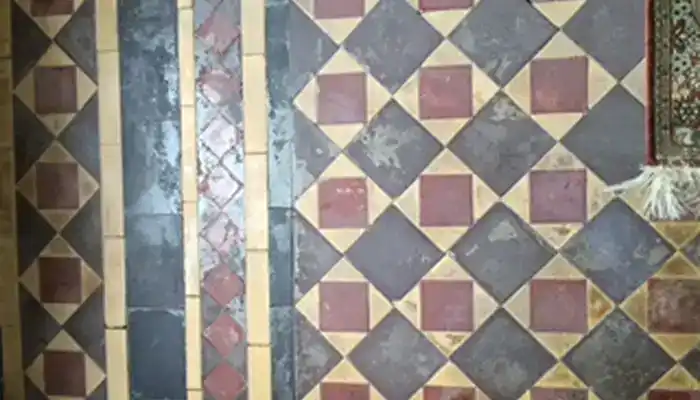

If your Minton tiles appear worn, patchy, and seemingly beyond repair, it’s important to note that old coatings, adhesive residues, and surface wear may be hiding the original pattern. In the Ovington hallway, a dark residue was evident on the surface, remnants of prior glue from past coverings were visible, and tiles began to shift at weakened joints. The lacklustre surface no longer showcased the original colour balance as effectively.

This project focused on revitalising a residential hallway floor that had been in place for over a century, still revealing its original geometric layout. The Minton tiles had endured decades of heavy foot traffic, but the accumulation of waxes, acrylic sealers, remnants of old sealants, and carpet adhesive had formed a grimy barrier that exaggerated the floor’s apparent damage.

Ovington is known for its older residential properties, including period cottages and detached homes from the Georgian and Victorian eras, alongside a few modern houses built during the latter half of the twentieth century. Victorian tile floors are frequently found in entrance halls, porches, boot rooms, and even kitchens within these older homes. Ovington, situated in Buckinghamshire near Aylesbury, falls under the HP22 postcode district and the jurisdiction of Buckinghamshire Council. The village retains a traditional rural charm, with many properties still featuring original period characteristics and robust floor constructions.

Exploring the History of Residue and Hidden Marks on the Floor

If your hallway reveals dark patches after removing carpet, it’s likely that old glue and surface treatments have adhered to the tile rather than merely lying as loose dirt. After removing the covering, the carpet adhesive left behind yellow-green and brownish residues, bits of bitumen, hardened substances, and old glue smears. Addressing these issues required softening, scraping, and extraction, rather than simply washing the surface again.

Contamination from paint and adhesive complicated the condition of the Ovington floor. Paint splatters, scraped areas, and stained sections initially seemed permanent. In my experience, these residues often partially rest on the fired surface while penetrating into open pores. The restoration process needed to distinguish between removable contaminants and genuine wear before any sealing options could be determined.

Old wax and linseed oil coating residues severely darkened the floor, as ancient coatings, waxes, and linseed oil can seep into the tile body, darkening over time. The dull surface was burdened with old protective layers, soiling coatings, grime, and remnants of previous cleaning treatments. Removing this layer was essential for accurately assessing the original colours.

Recognising Loose Areas and Understanding Moisture Behaviour

If your hallway tiles are shifting or sound hollow, excessive moisture and heavy machinery may be exacerbating the issue. The old permeable sub-floors beneath this hallway could allow moisture to penetrate if too much water is used, risking tile movement, lifting edges, dampness in the bedding, and the potential for instability spreading during restoration.

Loose tile movement occurs when individual tiles shift due to weakened bedding or grout support beneath them. Homeowners may notice cracked joints, hollow sounds, shifting tiles along grout lines, or small raised and sunken areas. The solution involves stabilising, re-fitting, or carefully working around vulnerable sections before applying stronger cleaning methods.

Managing subfloor moisture was treated as a critical factor because older floors were often installed without modern damp proof membranes. Breathable protection is essential for porous tiles, as trapped moisture, rising damp, and surface moisture can lead to salt issues and sealers that may whiten or fail rather than protect the tile body.

The risk of over-saturation influenced each cleaning decision, as excessive water can displace tiles, activate salt problems, and slow drying after restoration. Techniques such as wet vacuum extraction, controlled rinsing, removal of soiled solutions, and the use of floor fans helped manage moisture levels. Damp meter checks and moisture readings confirmed the surface readiness for sealing before applying protective measures.

Assessing Surface Wear and Identifying Patterns

If your main walkway appears flatter and greyer than the borders, decades of foot traffic have likely caused more significant wear in that area. The Ovington hallway exhibited this common wear pattern, where the tile face became more porous under foot traffic, allowing for greater absorption of dirt, contaminants, and coating residues.

It is vital to understand that this worn fired face cannot be corrected through grinding, as Victorian encaustic and geometric tiles are clay-fired at high temperatures. Their fired surface is chemically stable yet physically vulnerable to abrasion and incompatible with acidic cleaning methods. Using abrasive pads, harsh restoration techniques, and over-cleaning can damage soft clay inlays, ruin intricate patterns, and cause long-term harm to the original surface. Such damage is not worth risking.

Colour wear also varied considerably; black and red tiles tend to be more durable under wear, while softer buff tiles may deteriorate more quickly. The Ovington floor required cleaning, residue removal, and colour enhancement that respected the unglazed clay colours, rather than forcing a uniform new-looking surface.

A properly restored Victorian tile floor displays the original fired matte surface with consistent colour and pattern, while appropriately applied topical seals provide a slight protective sheen without altering the period character. This distinction was crucial, as the goal was to recover the original features and subtle sheen of a period hallway rather than create an artificial surface.

Why Was the Floor Recoverable?

If the pattern remains visible beneath the dark layer, restoration can often reveal much more than regular cleaning might suggest. The darkest areas of the Ovington hallway primarily comprised old coatings, wax build-up, acrylic sealers, adhesive, and ingrained soil rather than indicating complete pattern loss.

The restoration specification allowed for adequate dwell time, controlled soak periods, careful deck brush agitation where safe, the use of a floor buffer only in areas with minimal movement risk, and wet vacuum extraction to remove slurry and softened residues. Hand-held diamond blocks were used solely for careful edge work where pads struggled, while scrapers, small brushes, hand buffers, and white pads managed softened coatings, excess sealers, and final appearances without resorting to aggressive abrasion.

Maintaining proper ongoing care, including pH-neutral cleaning, grit removal before wet mopping, and resealing at appropriate intervals, is crucial for extending the floor’s lifespan. Stronger cleaning products should be avoided, as incorrect cleaners can leave residues, increase abrasion, and gradually strip protection from sealed floors. Broader care principles are outlined in the Victorian and Minton tile cleaning hub. A professionally restored and correctly sealed floor is significantly easier to clean and maintain compared to one that is worn or treated improperly.

How Do Old Adhesives and Failed Coatings Impact Dirt Retention in the Hallway?

Adhesive residues and failed coatings consistently attract dirt back into the hallway, as they bond contaminants to the worn clay surface. The old glue, bitumen, waxes, and surface coatings trap grime in the pores, causing ordinary mopping to redistribute dirty solutions rather than effectively removing the residue layer.

This issue, often referred to as residue lock-in, occurs when old products, stripped coating fragments, and ingrained dirt remain trapped within the surface after cleaning. Homeowners frequently notice dark patches, cloudy areas, and a floor that appears dull again after drying. Rectifying this situation requires applying coating removers, controlled scrubbing, rinsing stages, and wet vacuum extraction.

Old residue traps dirt within worn clay surfaces.

How Does Victorian Tile Restoration Effectively Remove Heavy Residue Without Disturbing Loose Areas?

Utilising aggressive stripping methods can inadvertently loosen unstable historic clay tiles before safely removing the old coating layer. Rushed cleaning often employs excessive water and pressure, which can cause loose tiles to lift, damage fragile edges, and force slurry into weakened joints.

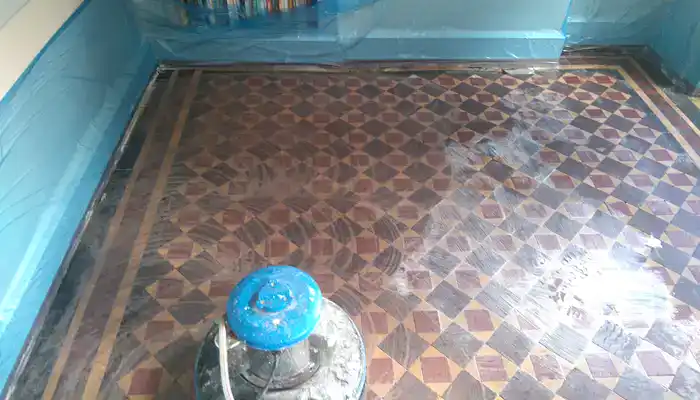

Controlled restoration techniques applied dwell time, low-moisture gel cleaning, careful scraping, deck brush agitation, wet vacuum extraction, and controlled rinsing to lift softened coatings without saturating the bedding plane. This moisture-led approach is central to the proper restoration of Victorian tiles, as old floors require a balanced method for cleaning, stabilising, and drying decisions. The process effectively removed heavy residues while preserving the original layout.

Incomplete stripping would have left old sealers, adhesive, and soiled solutions trapped in the pores, resulting in a patchy appearance once the floor dried. The Ovington sequence achieved a significantly superior outcome, as softened residues were extracted rather than smeared around, and a dry run before sealing confirmed the surface was adequately prepared for protection.

Why Do Restored Minton Floors Appear Clearer, Richer, and Easier to Maintain?

If your restored Minton floor looks clearer and richer after sealing, it indicates that the original colour was preserved beneath the coating residues. Initially, the Ovington floor appeared lighter after cleaning because the removal of waxes, old sealers, carpet adhesives, and grime from the surface unveiled the true colour.

The colour-enhancing impregnating sealer penetrated the pores, enriched the geometric patterns, and left no heavy coating across the tile surface. An oil-based sealer can be suitable for certain porous surfaces, but this floor required breathable protection, with any excess sealer buffed off using a hand buffer, resulting in a low sheen that respected the original clay character.

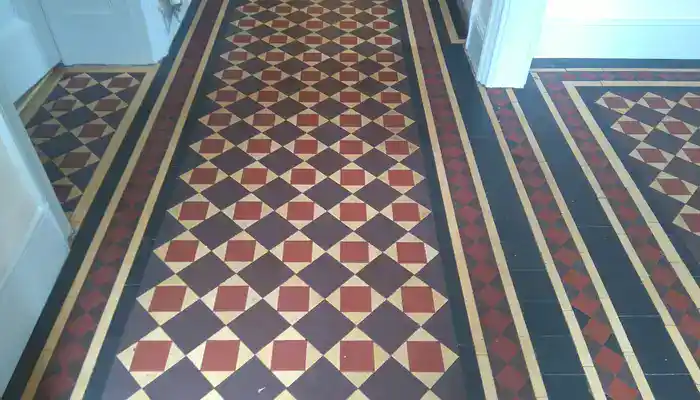

The finished hallway now looks dramatically transformed compared to its previous condition. In many instances, restored period floors appear superior to when they were first installed, as the original colours and patterns can be appreciated clearly. The floor also became easier to maintain, as sealed pores resist rapid soiling, while the genuine surface wear remains a testament to the floor’s age and character.

What Can We Learn from Case Studies of Victorian Tile Restoration Projects That Reveal Hidden Pattern Loss?

Numerous Victorian tile restoration projects illustrate similar hidden pattern loss when old coatings and worn clay create the impression of permanent damage. The Ovington hallway mirrors a worn Minton floor restoration project in Walsall, where loose areas and deep soil influenced the restoration approach. Both projects underscore the importance of removing contamination, drying, and implementing breathable protection before the final colour can be accurately assessed.

Related examples can also be found in Victorian tile restoration in Nottingham, Victorian tile restoration in Penkhull, and restoring colour to faded Victorian mosaic tiles. These pages maintain the same restoration principles while illustrating how old coatings, worn surfaces, moisture behaviour, and colour recovery can vary from one floor to another.

The comprehensive Victorian and Minton tile cleaning hub offers homeowners valuable insights into cleaning and care queries without transforming this Ovington case study into general DIY instructions. The evidence presented here reflects a singular completed project: a dark, adhesive-marked, and worn hallway was successfully transformed into a clearer, richer, and more manageable heritage surface.
